BirdEye 650D

Long Endurance Tactical UAS

Highlights

  • Wide coverage, stabilized day/night payload and moving target tracker
  • Long Endurance Small Tactical UAS
  • A unique fail-safe recovery concept for protecting the payload
  • Fully automated flight including takeoff and landing
  • Very low visual and noise signature
  • Multiple payload capabilities
  • Safe, reliable, & easy operation

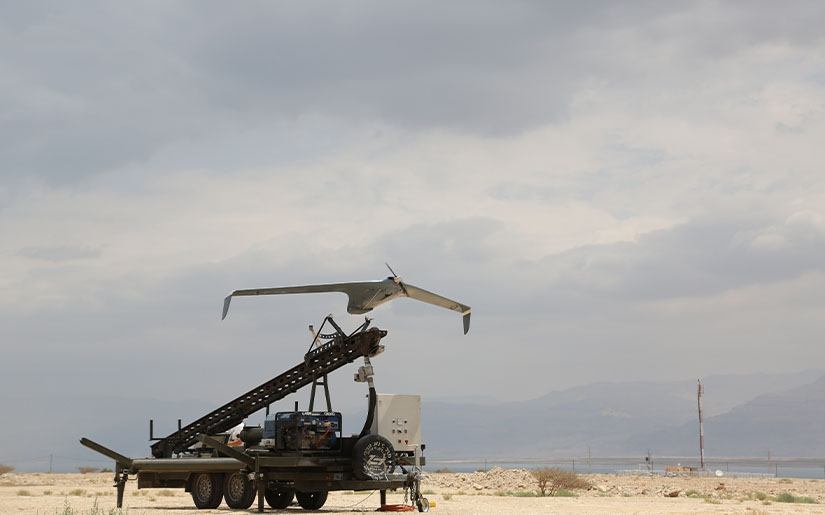

  • Pneumatic launcher for take-off

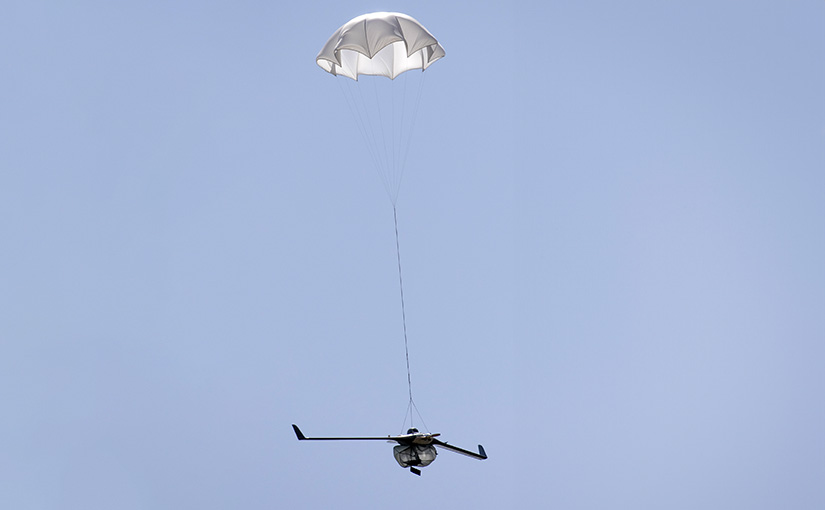

  • Parachute and airbag recovery system

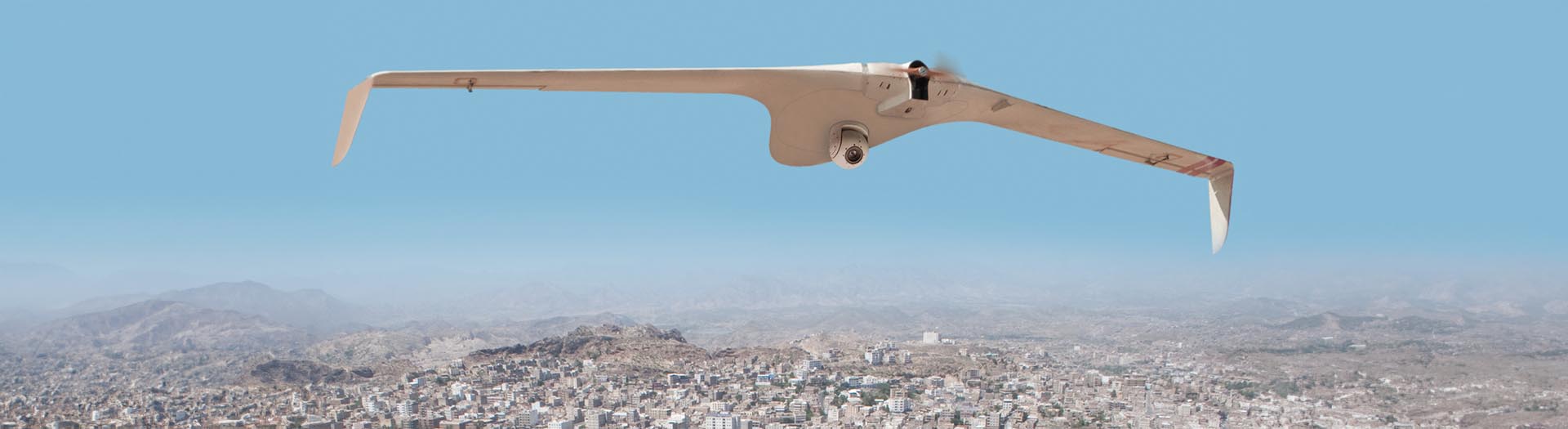

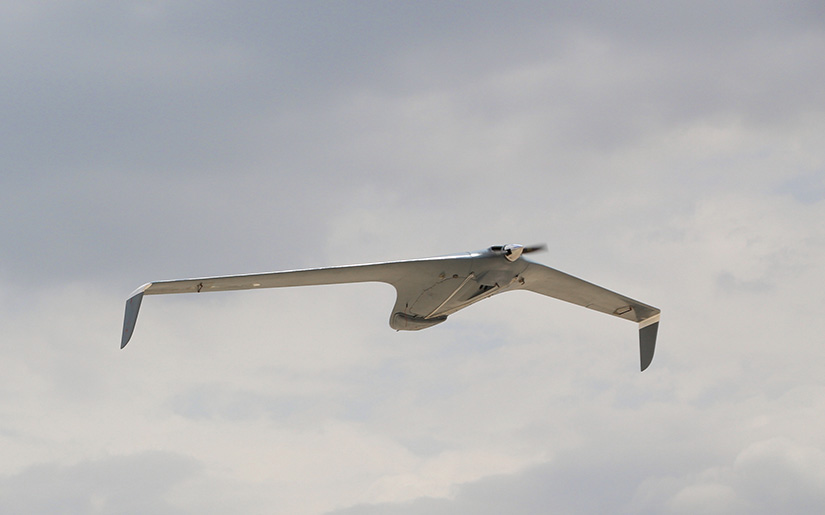

The BirdEye 650D is an advanced, affordable, long-endurance small tactical unmanned aerial system (UAS) designed for demanding intelligence, surveillance, target acquisition, and reconnaissance (ISTAR) missions. Optimized for organic operations alongside manoeuvring ground forces, this fixed-wing UAV provides real-time day/night intelligence for all missions, including urban environments and over-the-hill reconnaissance.

The system is highly mobile and transportable via a trailer for easy deployment with a minimized logistical footprint. Operated by three personnel using a vehicle-mounted ground control station (GCS) or portable, user-operated portable controls, it empowers tactical units to own and prioritize ISTAR assets.

Using a fuel -powered internal combustion engine (ICE), BirdEye 650D achieves up to 15 hours of endurance and a 150 km range. Its 15,000 feet maximum altitude, with loiter speeds of 40-80 KTAS speeds, enables both wide-area coverage and persistent surveillance, while its low visual and acoustic signature enhances covert mission capabilities.

Accommodating a payload up to 5.5 kg, it integrates stabilized day/night sensors and moving target trackers to support a range of ISTAR operations, such as reconnaissance, patrol, counterterrorism, convoy escort, communications relay, and law enforcement.

Optimized for tactical use, BIRDEYE 650D features automated flight controls, from takeoff to landing, enabling simple, efficient, and safe operation by ground forces. A pneumatic launcher and parachute/airbag recovery system with a unique, fail-safe flip manoeuvre help protect the aircraft and payload.

Developed by IAI, based on extensive UAS design expertise, the BirdEye 650D delivers a fully integrated ISTAR solution tailored for customers' mission needs.


Technical Details

Max take-off weight: 30 kg

Max payload weight: 5.5 kg

Wingspan: 4 m

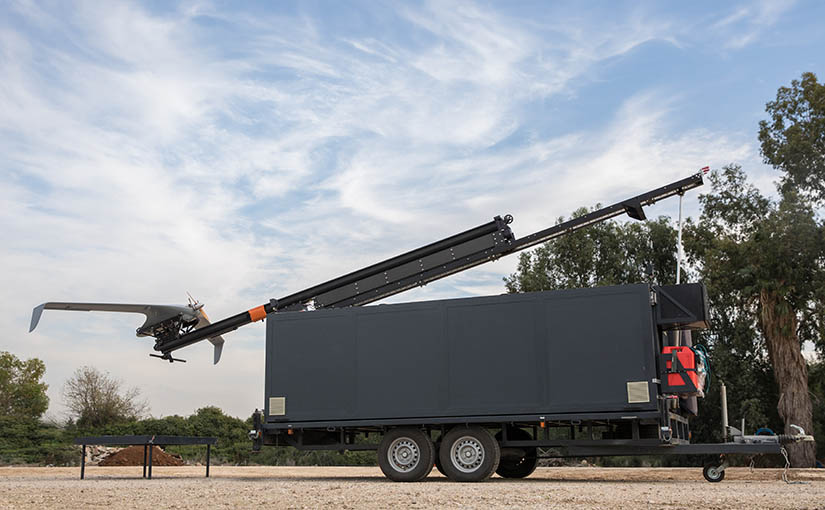

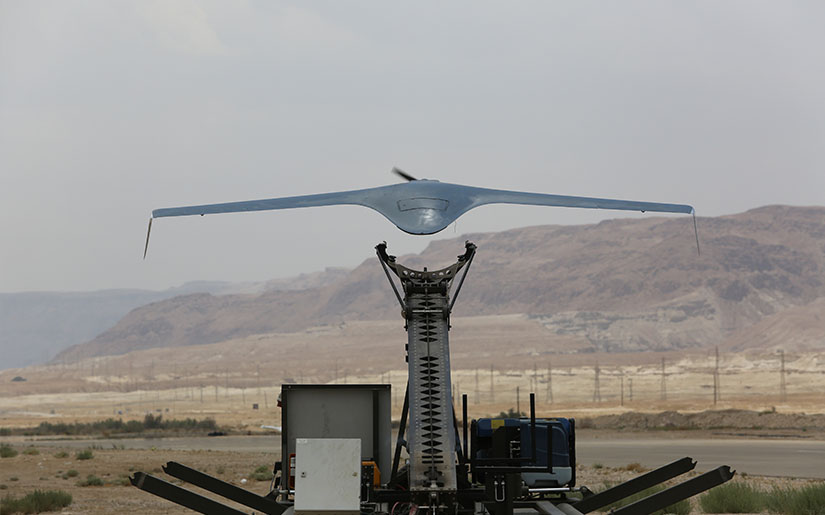

Pneumatic Launcher

Gasoline fuel engine

Performance

Endurance: Up to 15 hours

Range: 150 km

Altitude: 15,000 ft AGL

Loiter speed: 40 KTAS

Max speed: 80 KTAS
