Scorpius-G ELL-8256SB
Highlights
- Set of transceivers covering a wide frequency range
- Control unit for processing and controlling all ECM operations
- Operator Console for mission planning, maintenance, training, analysis, and debriefing
Cutting-Edge Electronic Warfare System
Scorpius-G (ELL-8256SB) is a powerful ground-based, state-of-the-art, long-distance RF Electronic Support Measures (ESM) and Electronic Countermeasures (ECM) system. Scorpius-G effectively intercepts, analyzes, locates, tracks and jams a wide variety of airborne and land-radar based systems including fire control radars, search radars, AEW sensors and SAR.
The system is based on advanced and innovative technology featuring Active Electronically Scanned Array (AESA) with Gallium-Nitride (GaN) Solid State Amplifiers (SSA). The novel design provides exceptional receiver sensitivity and Effective Radiated Power (ERP) transmission, far exceeding those of legacy EW solutions. The enhanced sensitivity and ERP enable Scorpius-G to detect, distort and degrade enemy radars even through their side lobes, greatly increasing the system's jamming effectiveness.
The Electronic Warfare System’s Automatic Functionality
The AESA technology allows for narrow, simultaneous multi-beam operation. Digital multi-beam forming provides unprecedented sensitivity and the ability to target multiple threats individually. The system can detect very low signals, simultaneously jam numerous emitters over its entire frequency range and displays an Electronic Order of Battle (EOB). The system is driven by a pre-programmed Mission Data File (MDF) and can operate automatically.

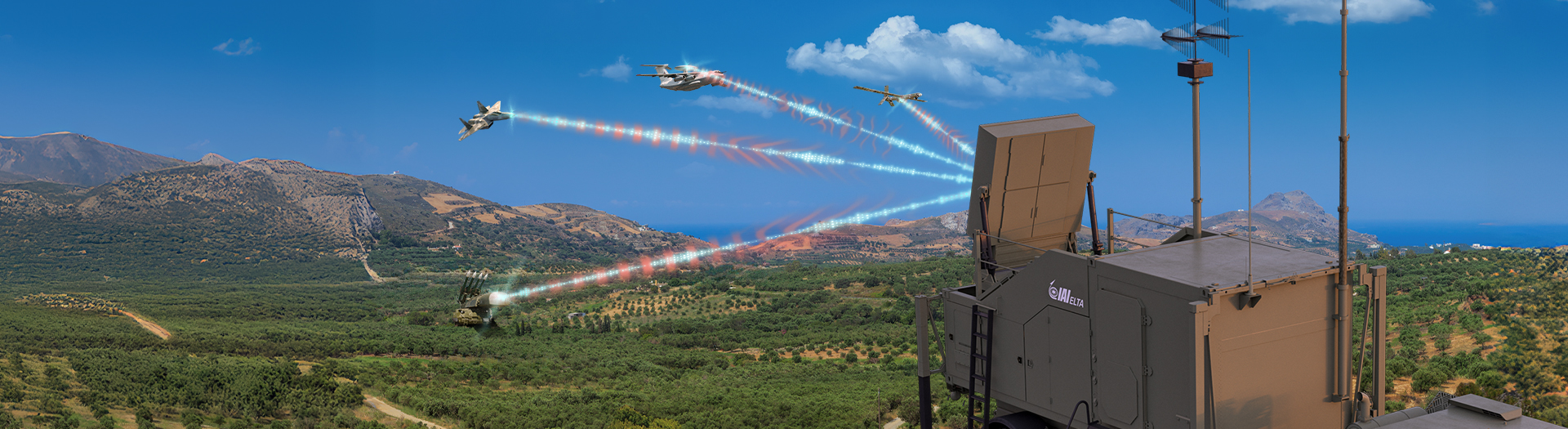

The system can be mounted on a rugged vehicle atop a rotating pedestal. Multiple Scorpius-G systems can cover larger and more complex regions when deployed in network mode. Scorpius-G can play a key role in air defense against a variety of aerial threats.
