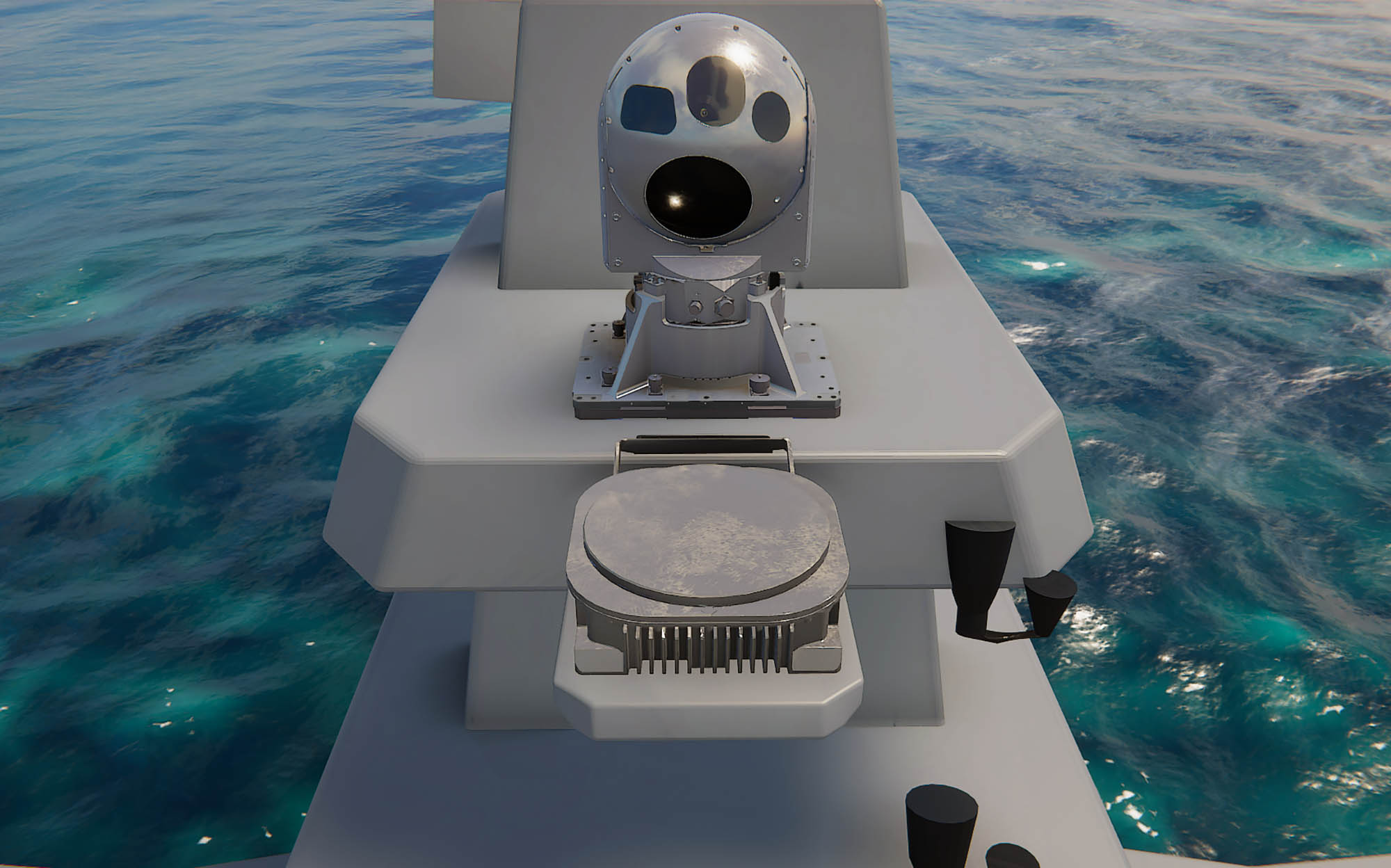

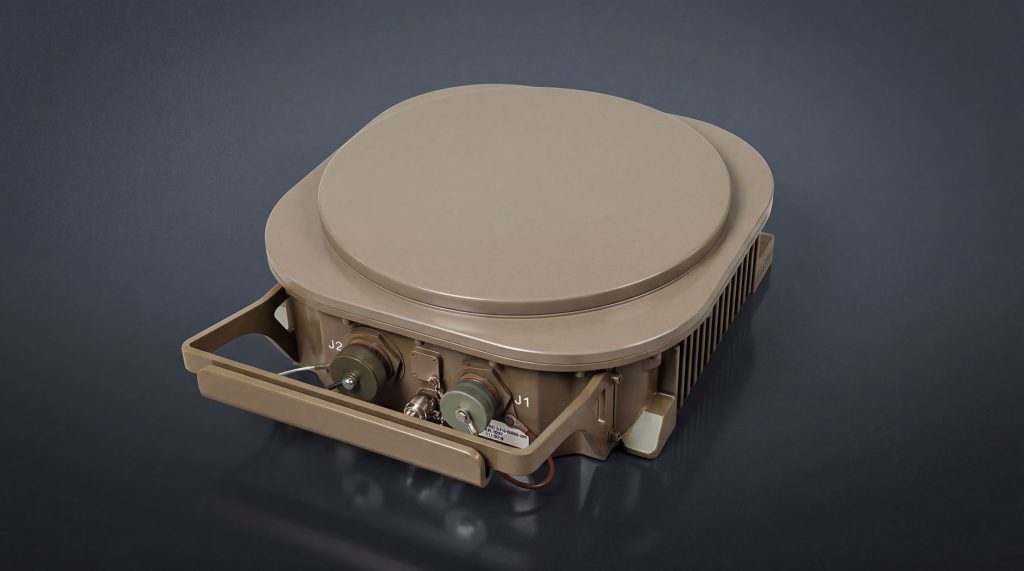

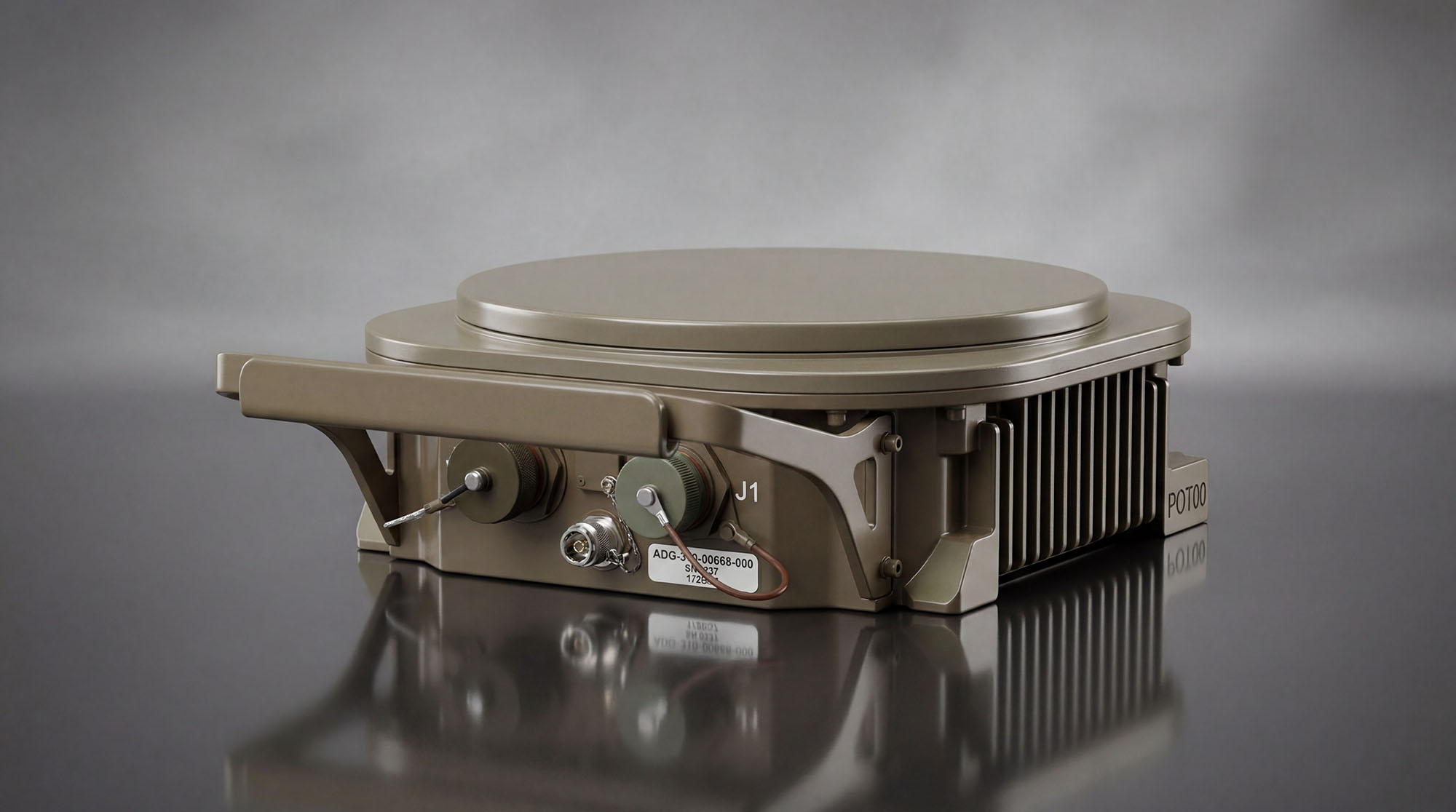

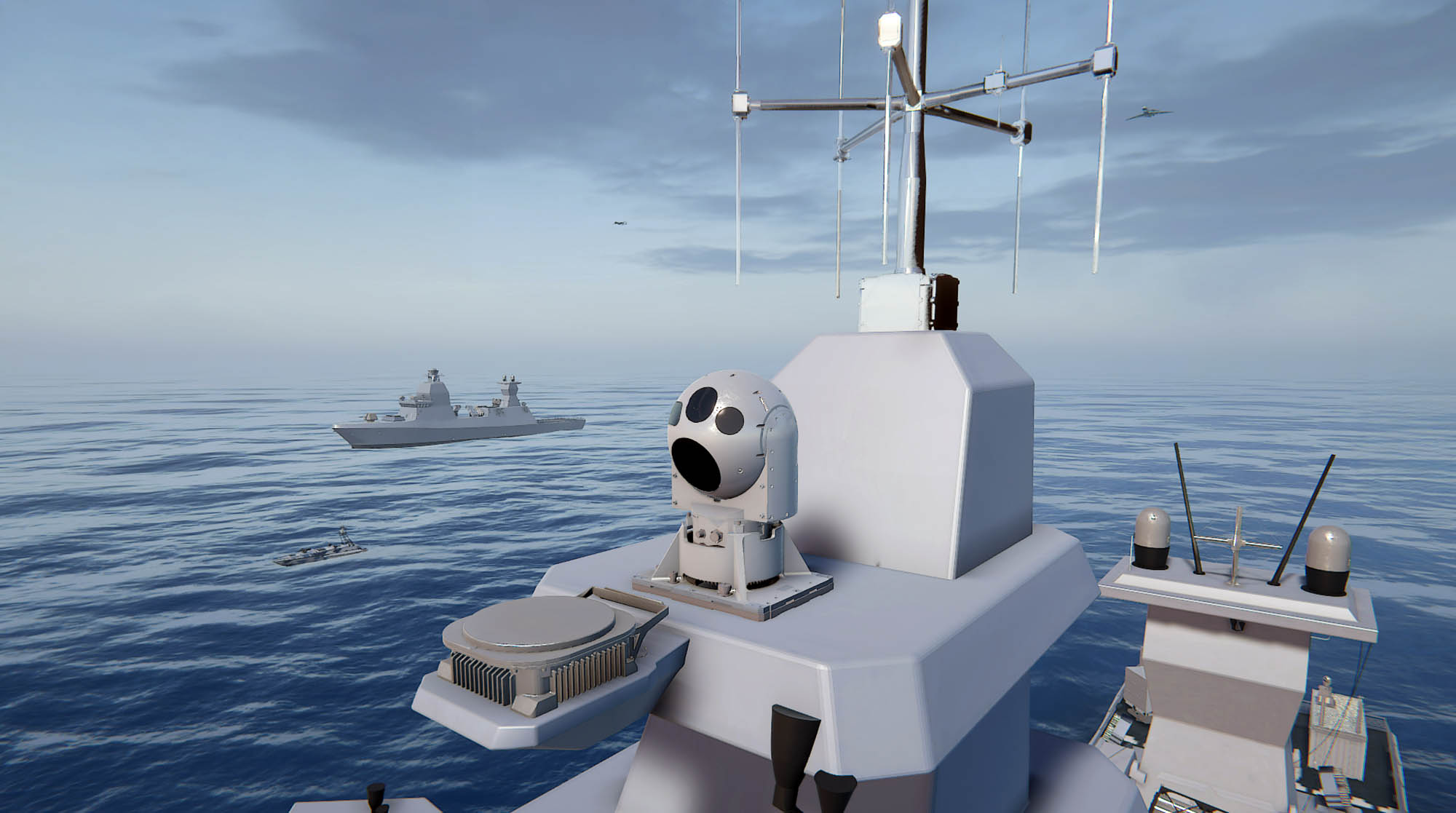

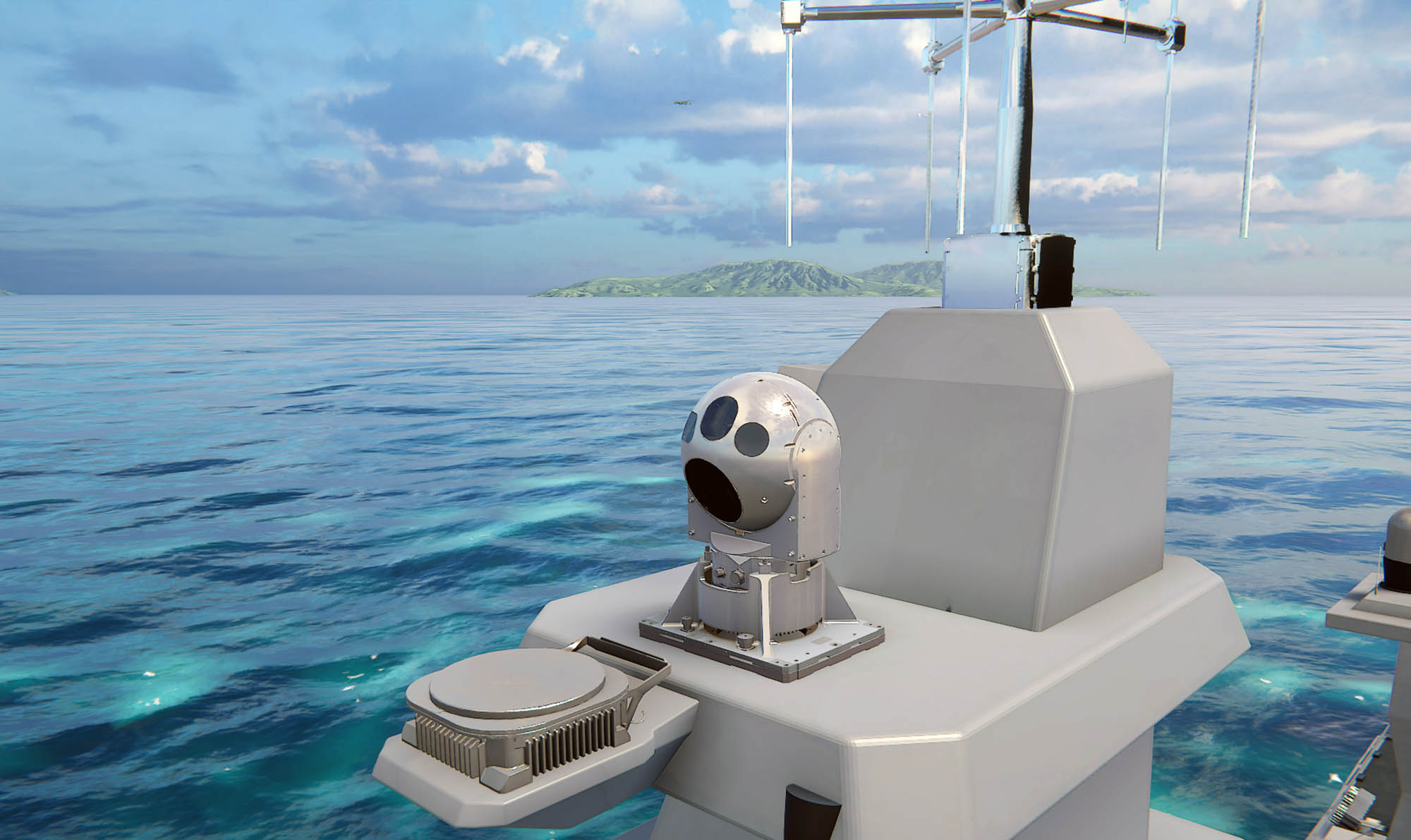

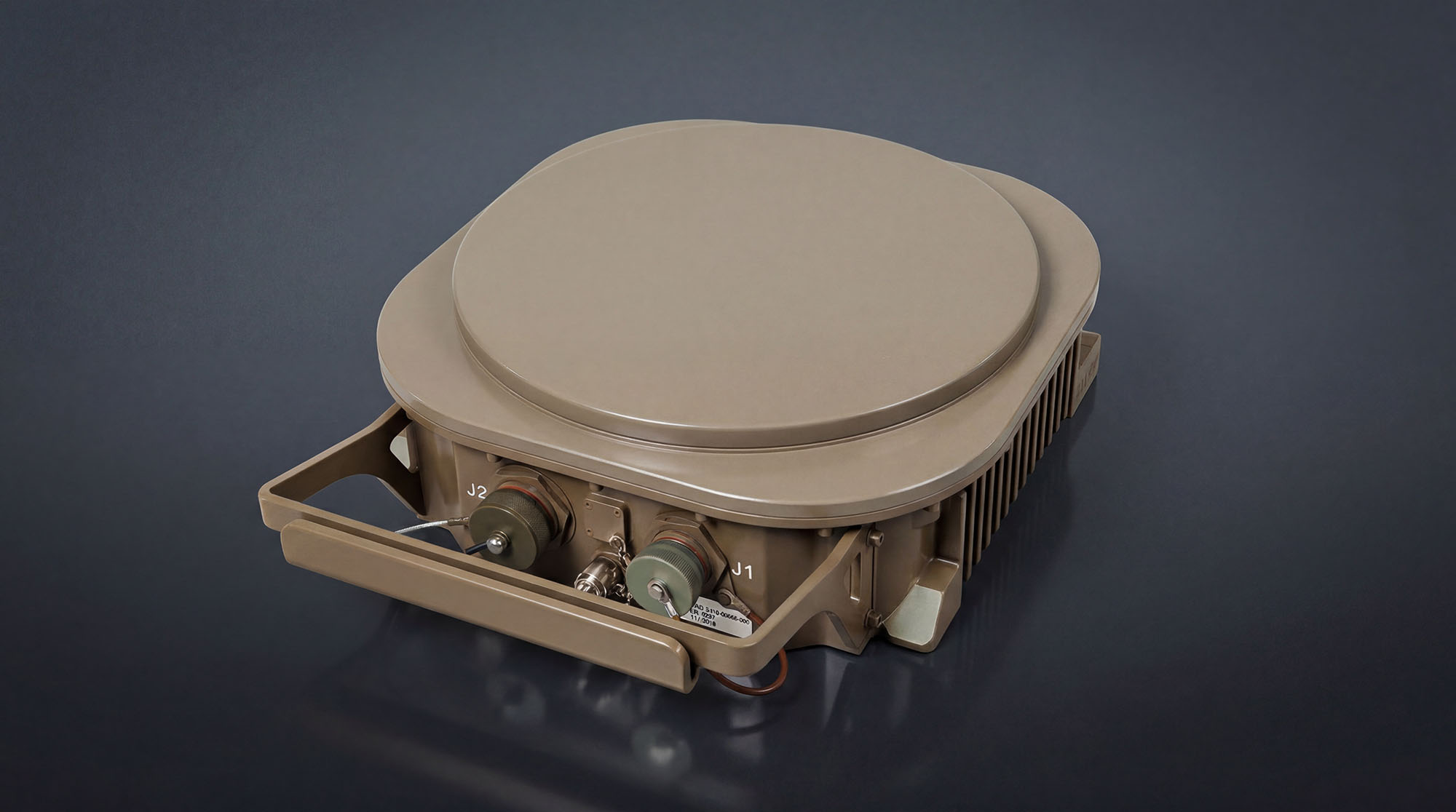

ADA-O Marine is a single-enclosure Line Replaceable Unit (LRU) Anti-Jam GNSS solution, designed and tested to operate as an outdoor unit capable of withstanding harsh environmental conditions typical of naval applications such as surface ships, USVs, radars, and more.
OVERVIEW
Modern naval assets rely on continuous Global Navigation Satellite Systems (GNSS) availability for positioning, navigation, and timing (PNT). However, GNSS signal jamming and interference—easily achieved by cheap, low-end equipment—can severely degrade PNT performance, even to the point of total denial. With over 20 years of proven experience, IAI delivers top-tier GNSS and Anti-Jam solutions that meet the most demanding operational requirements, integrating immune navigation technologies into airborne (manned and UAV), surface, maritime, and guided munitions platforms.
HIGHLIGHTS
- Operationally deployed, single enclosure, tested for naval-based environmental conditions
- Multiple element Controlled Reception Pattern Antenna (CRPA)
- Advanced and field proven spatial filtering algorithms delivering high resistance performance
- Provides RF feed of jam resistant signal to customer’s existing or new GNSS receivers, with support for L1, L2, SAASM/P(Y) code
- Provision for M-code (SW/FW upgrades only of existing hardware)
- Integral GNSS-IP receiver for tailored applications and even higher levels of resistance
- Combat proven digital technology
Values & Benefits
IAI has extensive experience in supplying GNSS and Anti-Jam systems worldwide, backed by decades of operational knowledge and successful integration across diverse platforms, ensuring reliability and superior protection against interference.
As part of its portfolio, MLM offers an end-to-end GNSS Anti-Jamming solution that includes a testing, simulation, and validation environment; cutting-edge technology achieving the highest possible jamming resistance; and full integration support for all types of receivers, navigation systems, and platforms.
Technical Details
- Technical Details
- Dimensions : 310x310x100mm
- Weight < 8.5Kg
- Temperature -40C to +71C
- Input power 45W@28VDC
- Ingress protection : IP65 heavy rain (provision for IP67)
- MTBF > 10,000 operation hour and low Life Cycle Cost
- Compatible with MIL-STD-810G, MIL-STD-1275B & MIL-STD-461F
