Global Presence
A tank on a grassy hill is protected by an ADA-O transparent dome-shaped shield, deflecting laser beams from satellites in a starry night sky, with digital effects overlayed.

ADA-O

Land
CONSULT WITH AN IAI EXPERT

OVERVIEW

Modern ground assets rely on continuous Global Navigation Satellite Systems (GNSS) availability for positioning, navigation, and timing (PNT). GNSS signal jamming and interference—easily achieved using cheap, low-end equipment—can seriously degrade or even completely deny GNSS-based PNT solutions. With over 20 years of proven experience, IAI provides top-tier GNSS and Anti-Jam solutions meeting the most demanding requirements, along with extensive expertise in integrating immune navigation systems across airborne (manned and UAV), surface, maritime, and guided munitions platforms.

HIGHLIGHTS

  • Operationally deployed, single enclosure, tested for land-based environmental conditions
  • Multiple element Controlled Reception Pattern Antenna (CRPA)
  • Advanced and field proven spatial filtering algorithms delivering high resistance performance
  • Provides RF feed of jam resistant signal to customer’s existing or new GNSS receivers, with support for L1, L2, SAASM/P(Y) code
  • Provision for M-code (SW/FW upgrades only of existing hardware)
  • Integral GNSS-IP receiver for tailored applications and even higher levels of resistance
  • Combat proven digital technology

Values & Benefits

As part of its portfolio, MLM offers an end-to-end GNSS Anti-Jamming solution, including a complete testing, simulation, and validation environment to ensure optimal system performance and resilience. The system employs cutting-edge technology available today, achieving the highest possible level of jamming resistance to maintain continuous and accurate PNT capabilities. Integration support is provided for all types of receivers, navigation systems, and platforms, ensuring adaptability and ease of implementation across diverse operational environments.

Technical Details

  • Technical Details
  • Dimensions: 310x310x100mm
  • Weight: < 8.5Kg
  • Temperature: -40C to +71C
  • Input power: 45W@28VDC
  • Ingress protection: IP65 heavy rain (provision for IP67)
  • MTBF > 10,000 operation hour and low Life Cycle Cost
  • Compatible with: •MIL-STD-810G •MIL-STD-1275B •MIL-STD-461F
A military vehicle with radar equipment is parked on a grassy field under a clear sky, surrounded by a digital shield dome with pink energy effects, symbolizing ADA-O electronic defence or protection technology.

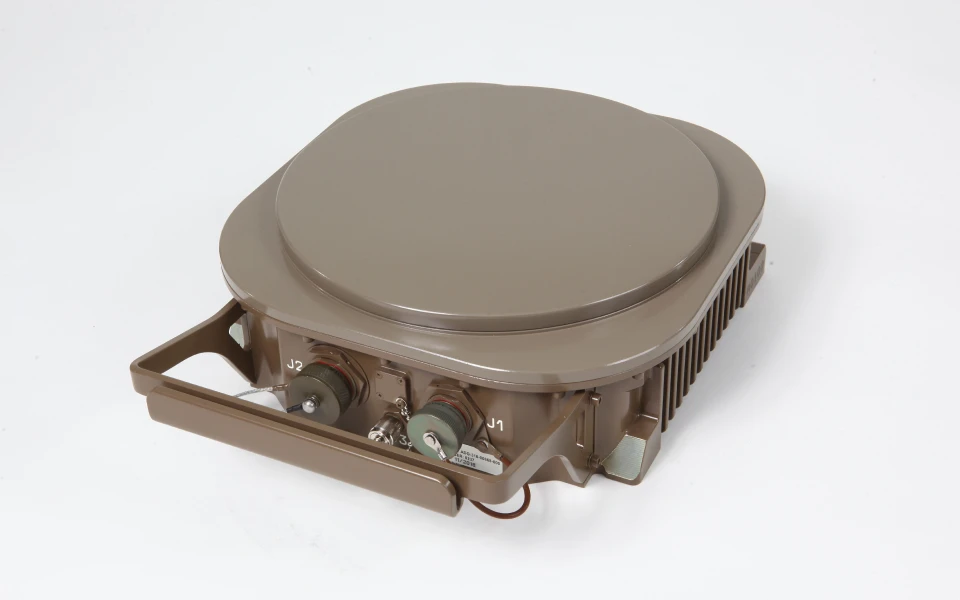

A brown, square-shaped ADA-O electronic device with a round top, two visible connectors labeled J1 and J2, and a carrying handle, set against a plain white background.
