By promptly confirming friendly locations and statuses, BlueDome improves situational awareness and overall combat efficiency. Its reliable and secure operation supports confident decision-making and safer mission execution in dynamic and congested battlefields.
OVERVIEW

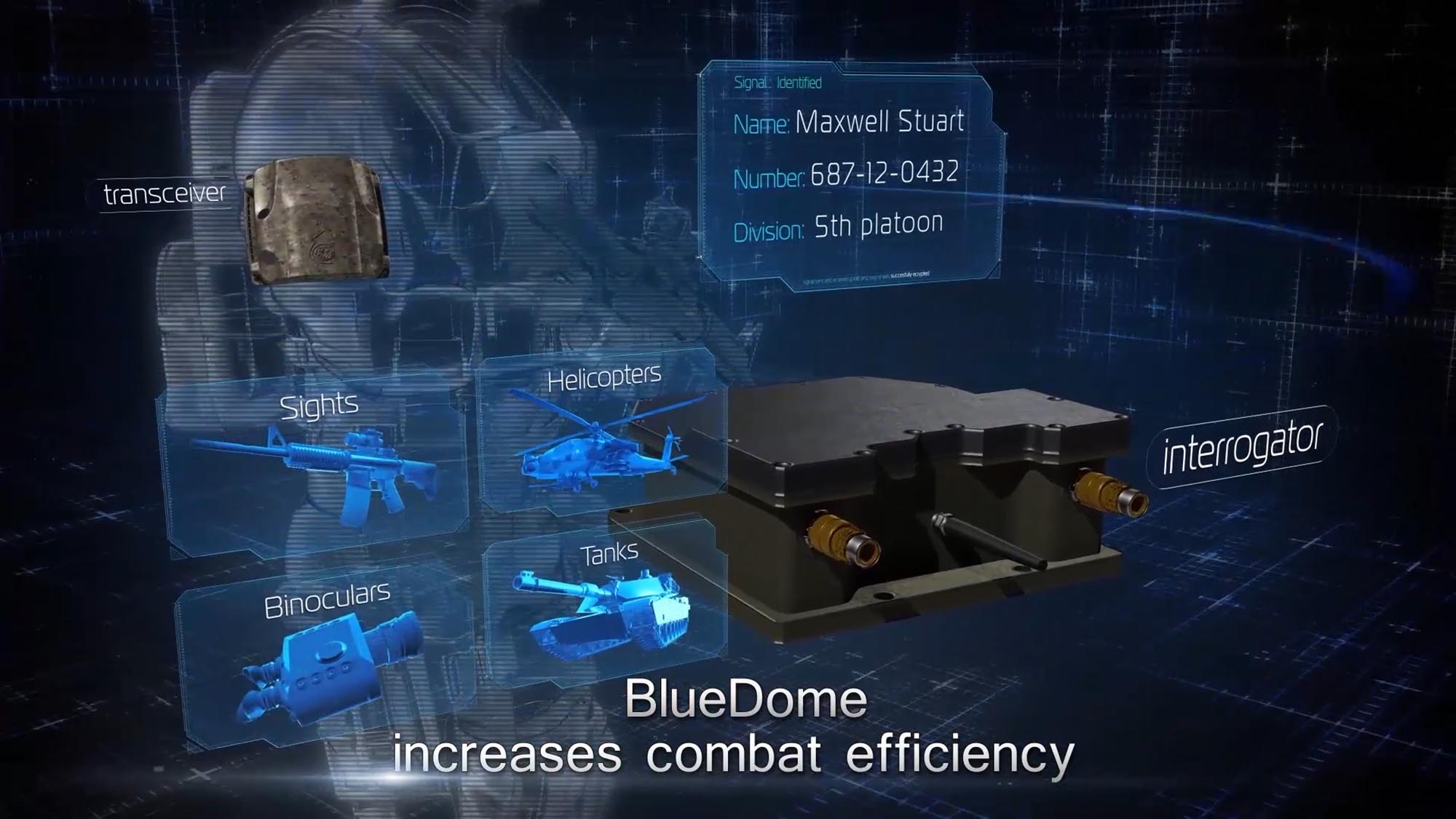

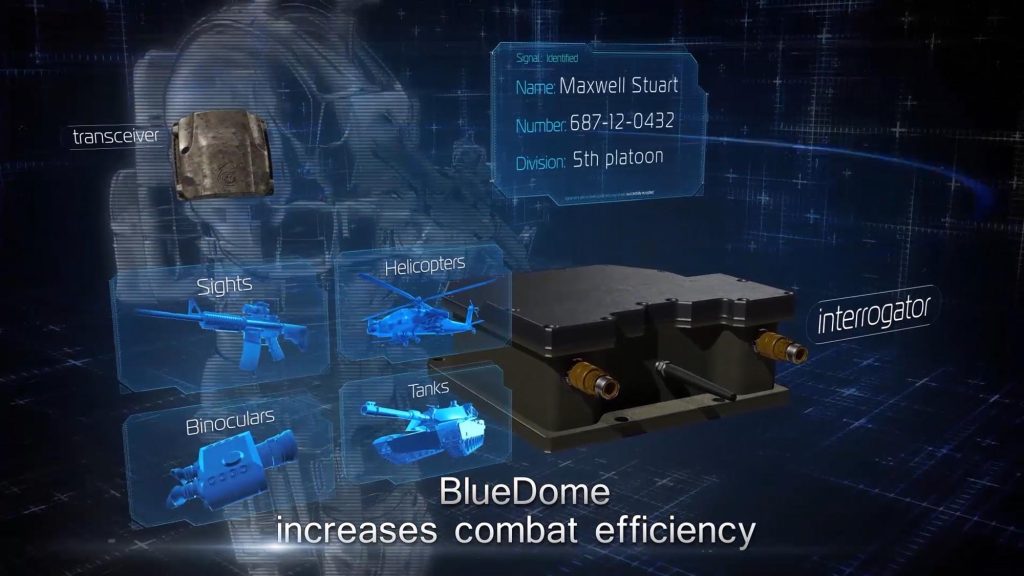

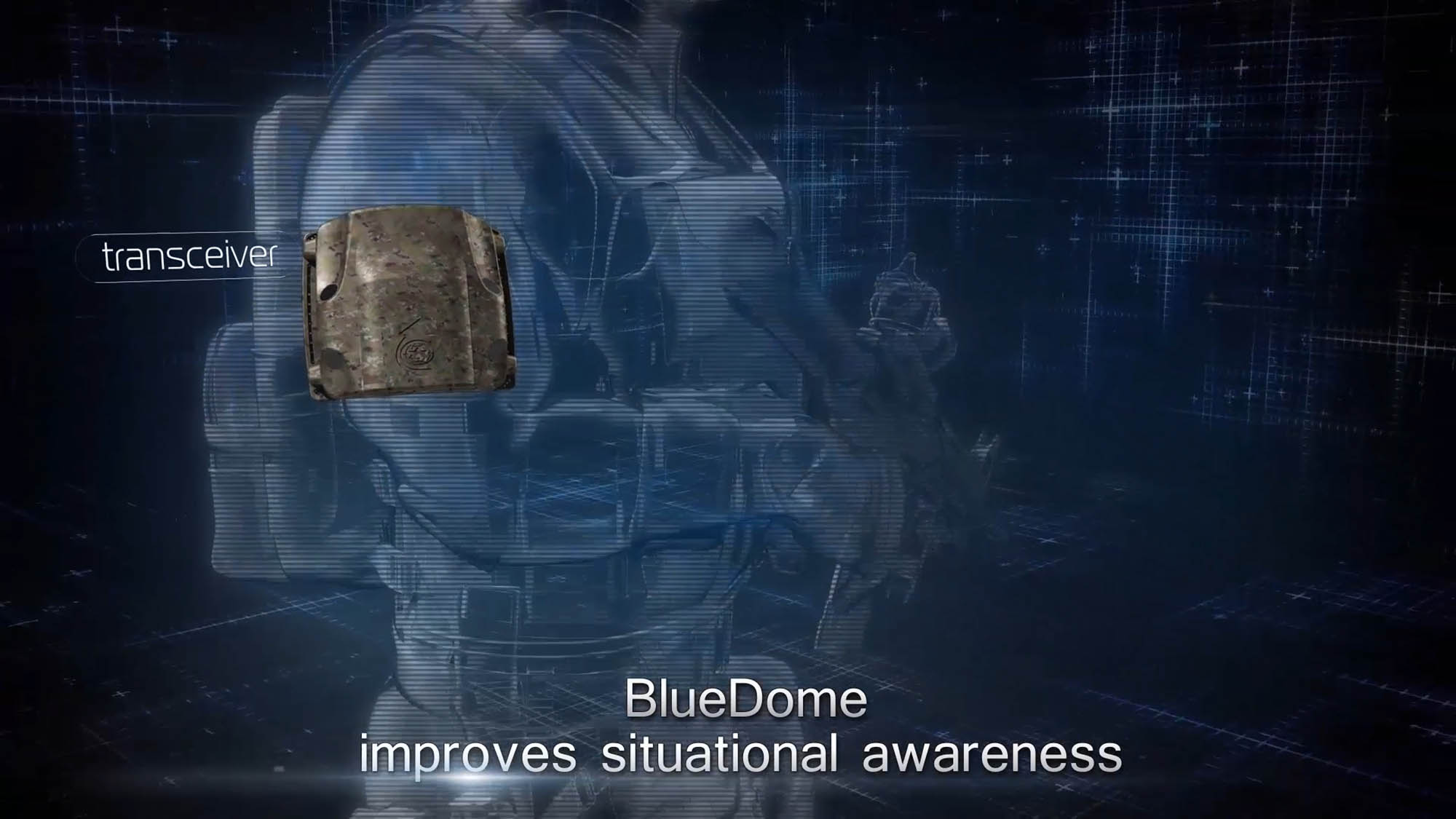

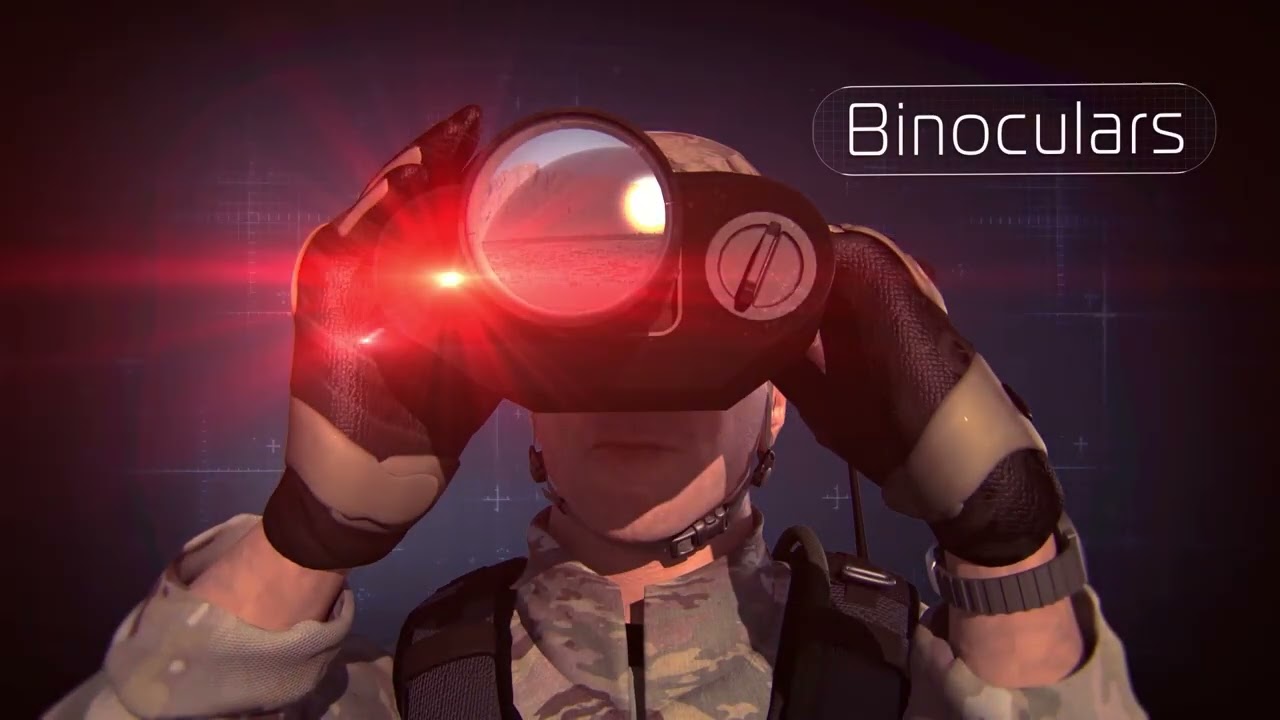

BlueDome™ is a Blue-Force Tracking (BFT) system for the tactical identification of dismounted blue forces. It is designed to rapidly identify friendly forces in the battlefield, improving combat efficiency and minimizing fratricide. The system operates independently of any other communication or navigation system, ensuring high reliability and immunity to jamming, misuse, or interception. Using a lightweight transponder worn by each soldier and an eye-safe coded laser interrogator integrated into various platforms—such as binoculars, ground vehicles, helicopters, or Laser Range Finder (LRF) systems—BlueDome promptly and reliably identifies friendly forces and their locations, enhancing situational awareness in complex combat environments.
HIGHLIGHTS
- Eye-Safe Coded Laser and active RF return emitter
- Laser Interrogator – sight integrated or external add-on options
- Precise data (ID & location) of the object/individual within the response
- Can function with different types of interrogators
- Does not interfere with other systems
- Can be integrated to any tactical combat SA system
- Line-of-Sight (LoS) and Near-Line-of-Sight (NLoS) interrogation
- NLoS identifies friendly forces hidden inside rooms, in alleyways or behind camouflage nets
- Very high reliability: directional interrogation / secure response
- Precise data (ID & location) of the object/individual within the response
Values & Benefits
BlueDome is addressed to ground forces and specifically tailored for strike forces, including Special Forces and Strike Brigades. It is also applicable for light combat Armored Vehicle platoons and Anti-Terror Homeland Security personnel, providing an adaptable solution across diverse mission profiles.
The system reduces friendly fire casualties in complex battlefields by rapidly and reliably confirming the presence of friendly forces. When unidentified personnel are observed, the interrogator directs a coded laser at them; if friendly, their transponder responds instantly, verifying identification and preventing potential fratricide.
BlueDome operates autonomously, without relying on radio communications or other navigation devices that could expose troop positions to hostile entities. This independence ensures operational security while maintaining effective coordination and identification capabilities.
Technical Details
- Technical Details
- Mounting: One on each shoulder or one on a helmet RF Transmitter •Frequency: Configurable at the Sub 1GHz regime •Modulation: GFSK •Tx. Max Power: 32dBm
- Biometric operation: Assigned to a specific person NLOS capability to detect “Friendly Forces”
- Dimensions (shoulder): 1"(25mm) x2 .6"(65mm) x 3"(75mm) Eye-Safe Coded Laser and active RF return emitter
- Weight (shoulder): 0.3 pounds (140g) Laser Interrogator - sight integrated or external add-on options
- Battery Type: Rechargeable NCR 18650B or two primary CR123 Precise data (ID & location) of the object/individual within the response
- Battery life: Over one week with CR123 batteries in typical conditions A "battery status" button with indicator light is hidden on the back of the sleeve Can be integrated to any tactical combat SA system
- Temperature range of operation: -10°C to +50°C
