OVERVIEW
ELTA’s ELM-2106NG can detect a wide variety of airborne platforms, including low altitude high-speed fighter aircraft, hovering helicopters, UAVs and low speed ultra-lights. The radar provides accurate range, azimuth and elevation angle measurements for each target, differentiating between fixed-wing aircraft and helicopters and classifying helicopters by rotor rotation rate, and it can be used as a local air defence system, a gap filler radar complementing a main air defence system, or as a search radar in support of anti-aircraft weapon systems.
HIGHLIGHTS
- Automatic detection and classification of airborne targets
- Track-While-Scan of up to 60 targets
- Target detection velocity from 36 km/hour
- Operates 24/7 under all weather conditions
- Interoperability with anti-aircraft weapon systems
- Integrated with IFF (option)
Values & Benefits
The radar can detect a wide variety of airborne platforms, including low altitude high-speed fighter aircraft, hovering helicopters, UAVs and low speed ultra-lights.
It provides accurate range, azimuth and elevation angle measurements for each target, differentiating between fixed-wing aircraft and helicopters and classifying helicopters by rotor rotation rate.
The radar can be used as a local air defence system, a gap filler radar complementing a main air defence system, or as a search radar in support of anti-aircraft weapon systems.
The Tactical 3D Air defence Radar can be operated as a local Air defence C³ System providing warning and target designation to surface-to-Air weapon systems, including MANPADS.
Technical Details
- Technical Details Performance
- Detection ranges Instrumental: 100 km Fighter aircraft: 40-60 km Hovering helicopters: 25 km UAVs and Ultra Lights: 20 km Fast and easy deployment (in less than 15 minutes)

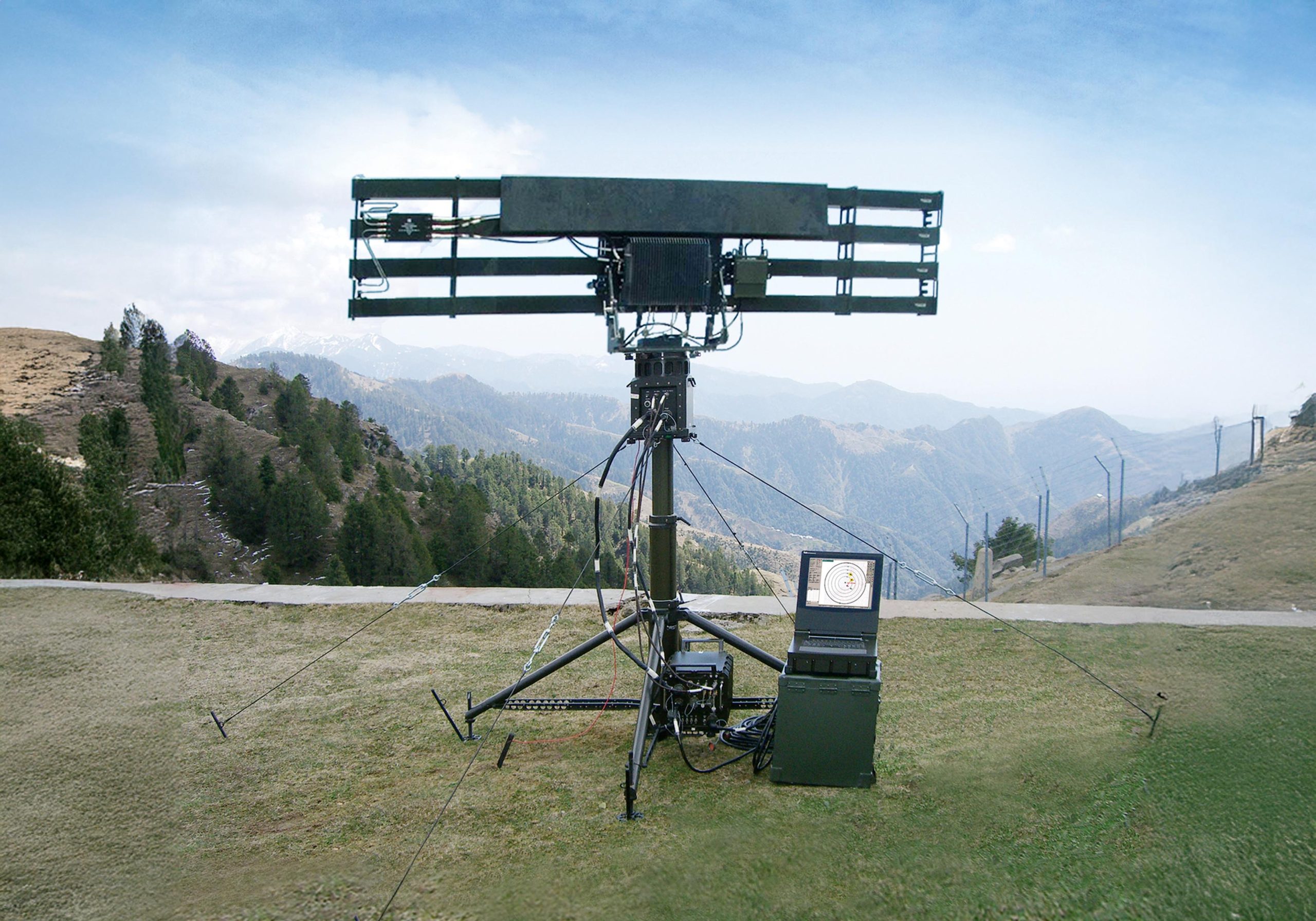

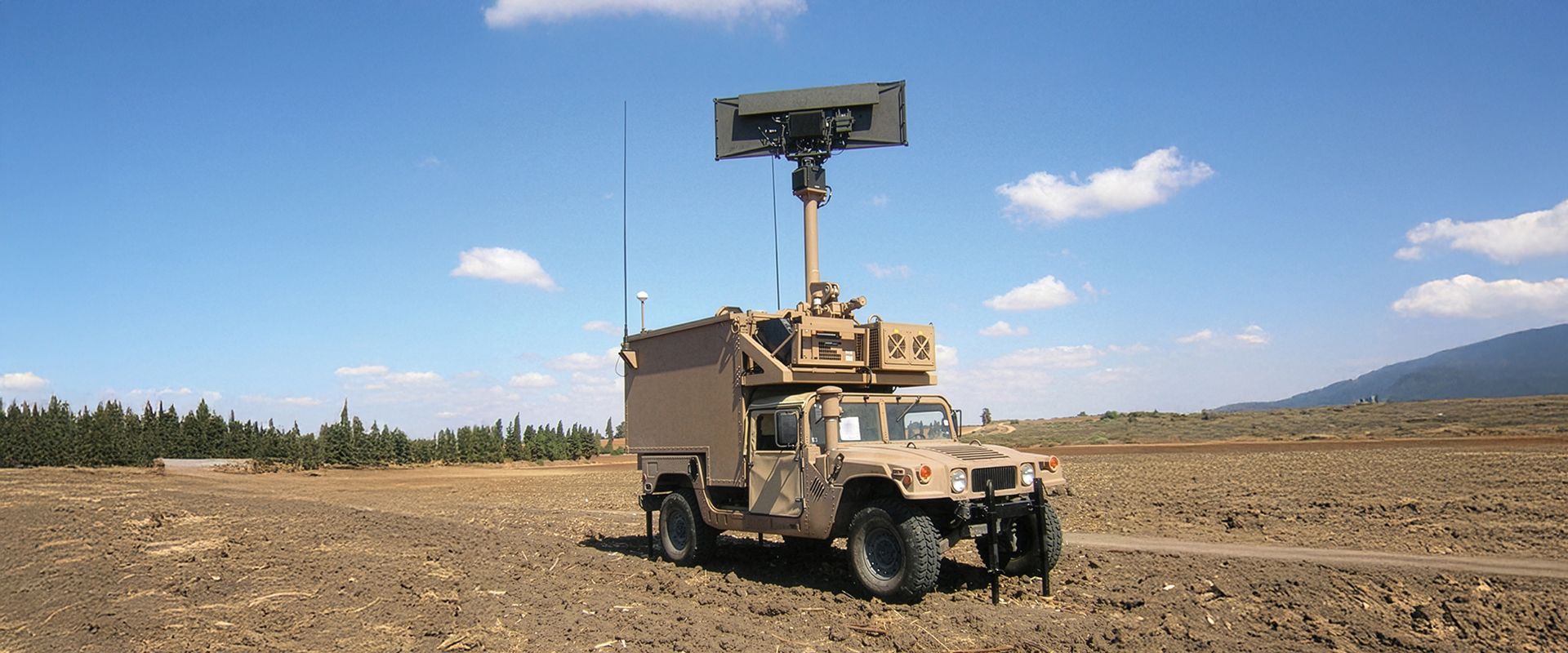

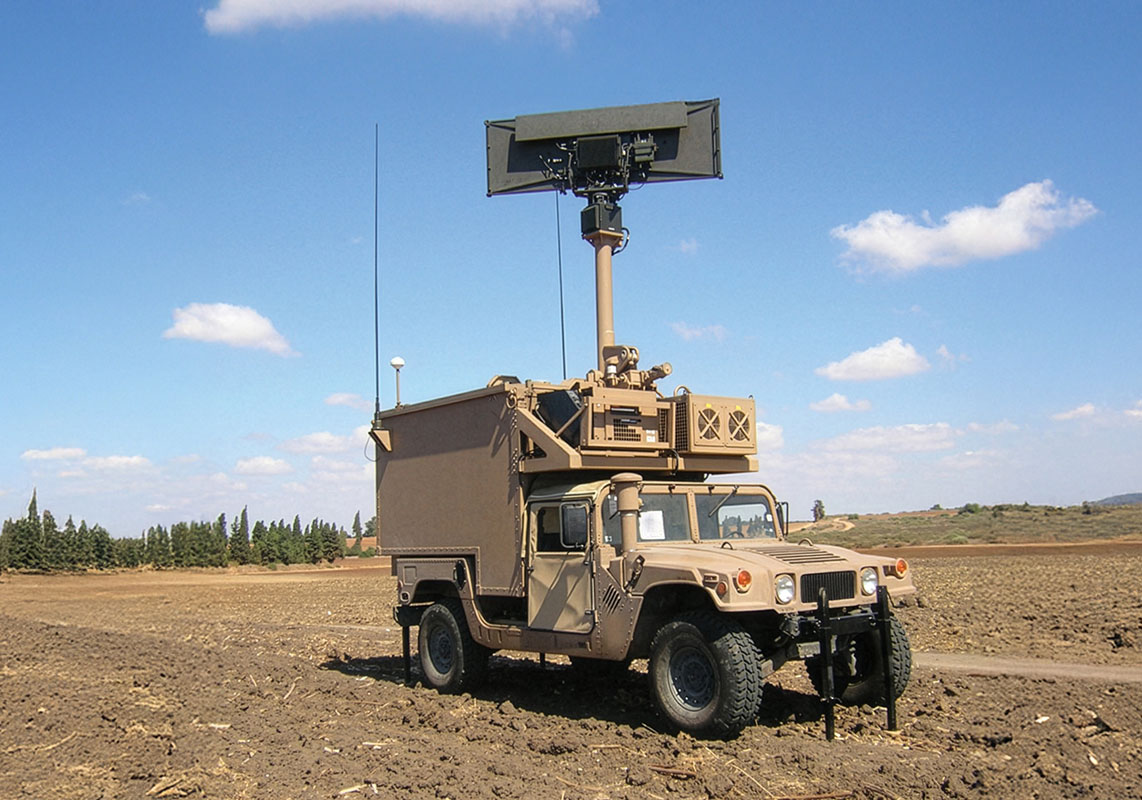

- Accuracy Range: 30 m Azimuth: 0.5° Elevation accuracy: 2° Fully transportable and can be installed on: Quadruped or fixed towers Shelters Vehicles
- Operating Conditions System weight: 170 kg (320 kg incl. carriage boxes) Power requirements: 20-32 Volts DC Operational temperature: (-30, +50) °C Easy to operate PC-based control unit and display
- Environmental conditions MIL-STD-810F High reliability, extensive Built-in-Test
- EMC/EMI MIL-STD-461C
- High MTBF (1500 hours) and low MTTR (20 minutes)
- Standard power source
