OVERVIEW

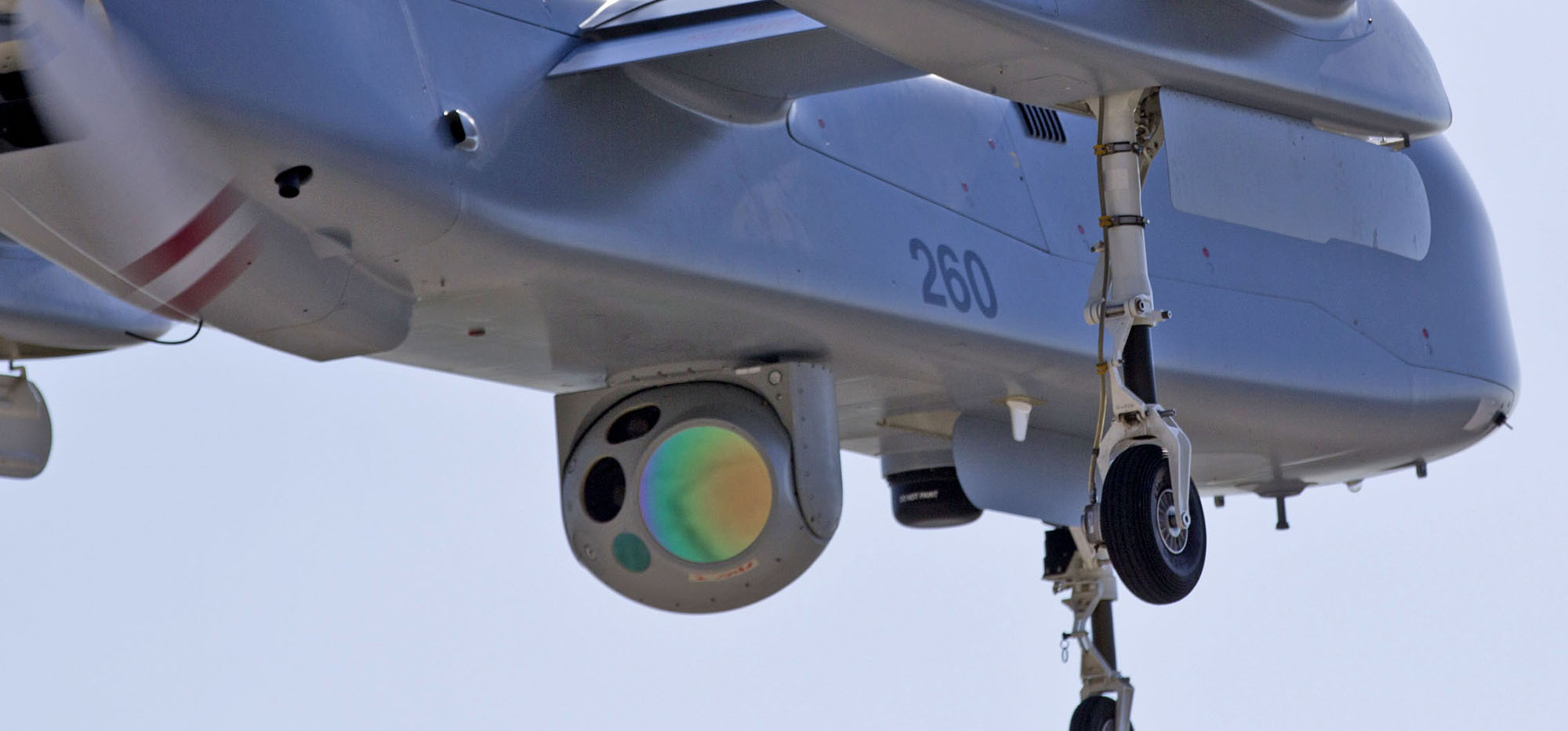

A large-format payload, M19 provides high definition multi-sensor imagery at ultra-long range, delivering outstanding observation quality at long distances. M19 is operated on manned and unmanned airborne platforms, flying at Medium and High Altitude.
The M19 can be easily connected and integrated into any C4I or operate with IAI’s control systems.
IAI’s customer support provides close and personal support to the customer through a cost-effective ILS package tailored to the customer’s needs to ensure the required availability.
HIGHLIGHTS
- Single LRU Design with up to 7 Sensors.
- Fully Digital Payload (Video & Communication)
- Gimbal – 4-Axis High Gyro-Stabilization level
- Advanced Image Processing
- EO, IR & SWIR Sensors in a Single Unit
- High Reliability
- Multi-Sensor System – a Large Variety of Sensors
- Eye-Safe Laser Rangefinder
- Unique Image Enhancements Providing High-Quality Image
- Optional Laser Pointer, Illuminators, and Designators
- Integrated INS
Technical Details
- Technical Details
- Dimensions: •Diameter: 22.6 inches (576 mm) •Height: 27.3 inches (694 mm) •Weight: 85 Kg (Subject to Configuration) Day Camera: Various options of continuous zoom, spotter, and megapixel cameras (single or dual channel)
- Field of Regard: Azimuth: 360° continuous, -110° to +25° SWIR Camera: High-performance SWIR Spotter
- Slewing Rate: Up to 100°/sec Automatic TV Tracker: Multi Modes - Track, Adjust, Offset & Search
- Thermal Camera: •Wavelength: 3-5 microns •Resolution: 1280x1024 (HD) Lasers: Several laser options (High-speed LRFs, pointers, illuminators & designators)
- Image Processing: Color Enhancement, Dynamic Range Enhancement, ACE - Adaptive Contrast Enhancement
