OVERVIEW
IAI specializes in the development and manufacturing of inertial sensors and Inertial Navigation Systems, forming the cornerstone of its Resilient Navigation offering. As one of the world’s leading inertial design and manufacturing centers and Israel’s National Navigation Center of Excellence, IAI provides its customers with the most accurate, up-to-date, and cost-effective inertial-based PNT solutions.
HIGHLIGHTS
- Employing TAMAM state-of-the-art Fiber optic gyroscope (FOG) technology
- Compact and lightweight design
- High reliability
- No scheduled maintenance or Calibration required
- Designed for the high-shock and vibration environment
- ITAR free
Values & Benefits

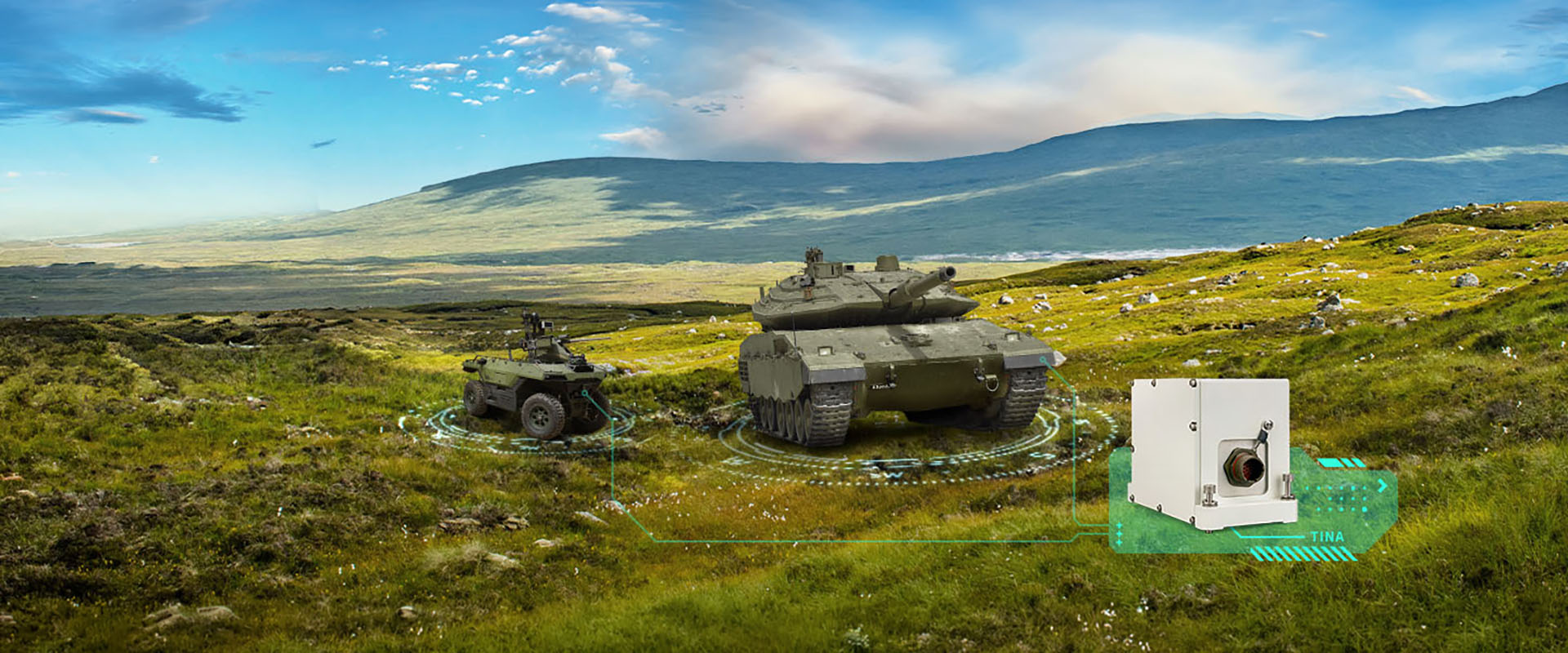

IAI’s TINA is an angle measurement unit specially designed for high-shock and vibration environments, providing outputs of angular rates for control, stabilization, and guidance applications.
The TINA system has a flawless record in various land and maritime applications, demonstrating consistent performance in demanding operational conditions.
TINA is used in Main Battle Tanks (MBT) cannon stabilization, machine-gun turret stabilization, electro-optical payload stabilization, shipboard firing control and stabilization systems, and more.
Technical Details
- Technical Details
- In run stability 3 °/hr
- Random Walk 0.07 °/√("hr" )
- Scale Factor Over full temperature range 750 ppm
- Environmental Conditions MIL-STD-810F and MIL-STD-461E
- Bandwidth 200 HZ
- nput rate for each axis ±200 °/sec
- Dimensions 175 mm (L), 86 mm (W), 115 mm (H)
- Weight 2.2 kg
- Operating Temperature -30°C to +65°C
- Vibrations 6 Grms
- Shock 1000 G, 0.6 msec or 40G 18 msec
