OVERVIEW
IAI specializes in the development and manufacturing of inertial sensors and Inertial Navigation systems as a cornerstone of its Resilient Navigation offering. IAI is one of the world’s leading inertial design and manufacturing centers, and Israel’s National Navigation Center of Excellence, and building on its heritage, IAI provides its customers with the most accurate, up-to-date and cost-effective inertial-based PNT solutions.
HIGHLIGHTS
- Based on IAI’s inertial sensors (RLG and Accelerometers)
- On the ground and In-Flight Alignment (IFA) with GPS
- Full operation in GPS-denied conditions
- Several accuracy grades
- Integrated with aircraft aiding devices such as GNSS, Altimeter and more
Values & Benefits

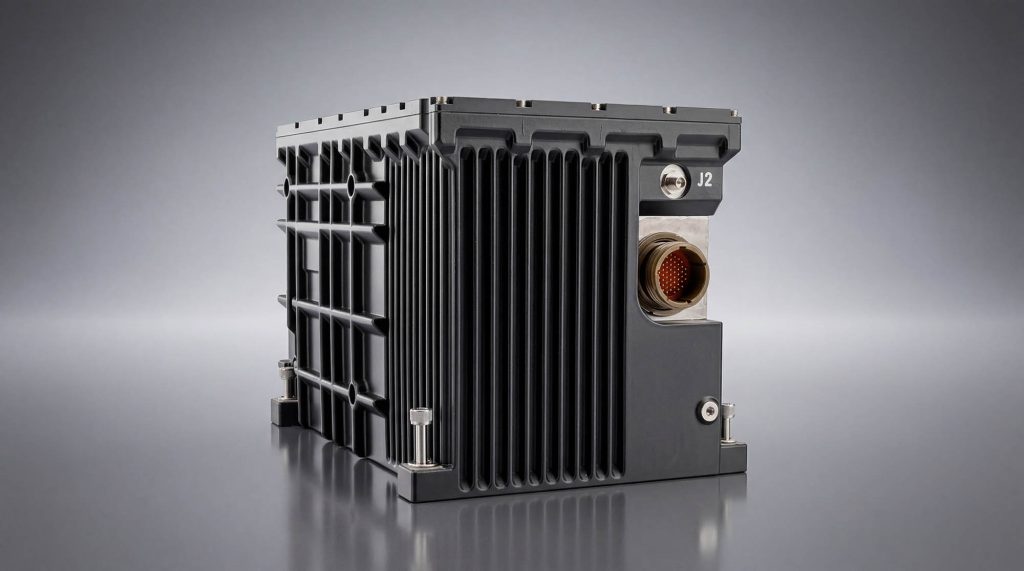

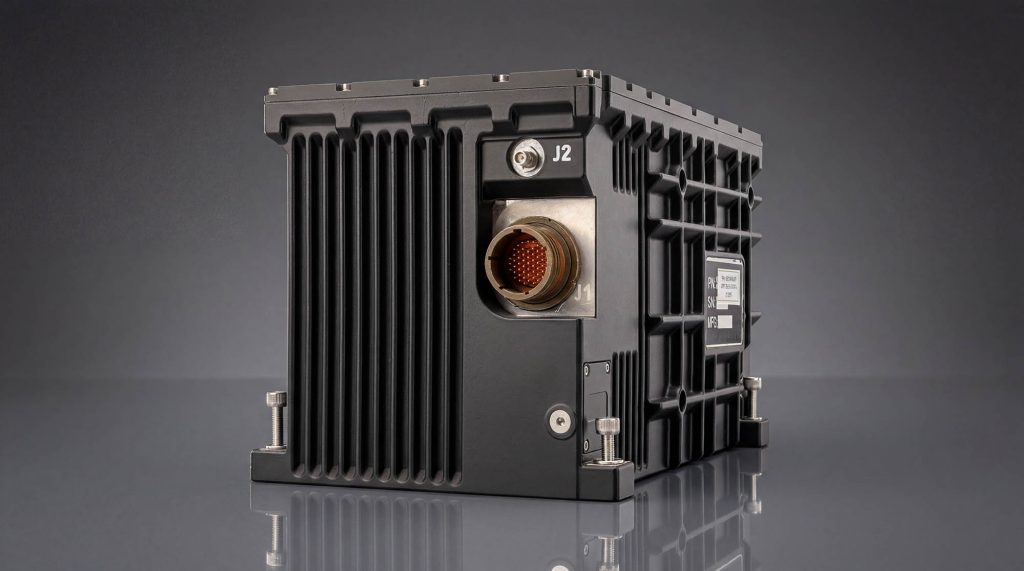

IAI’s TNL-16GE is an airborne Inertial Navigation System, providing both Navigation data outputs, as well as inertial data for control and stabilization.
TNL-16GE is used in various applications such as Unmanned Aerial Systems (UAS), fixed-wing aircraft, rotorcraft, reconnaissance and targeting payloads, SAR Motion Compensation and more.
Technical Details
- Technical Details
- Horizontal Position Error 8 Nm/Hr - 0.8 Nm/Hr
- Heading Accuracy [RMS] 0.15°/Hr - 0.01°/Hr
- Pitch & Roll Accuracy [RMS] 0.2° - 0.05°
- Weight 6.6 kg
- Communication 1553RT/RS422/ Fast Ethernet
- Dimensions 261mm (L) x 147mm (W) x 165.5mm (H)
- Power per MIL-STD-1275 28VDC, 26 W max
- Interfaces 1553(RT), RS422, Fast Ethernet, ARINC 423, Configuration discrete
- Environmental conditions MIL-STD-810F and MIL-STD-461E -40°C to +71°C
