OVERVIEW

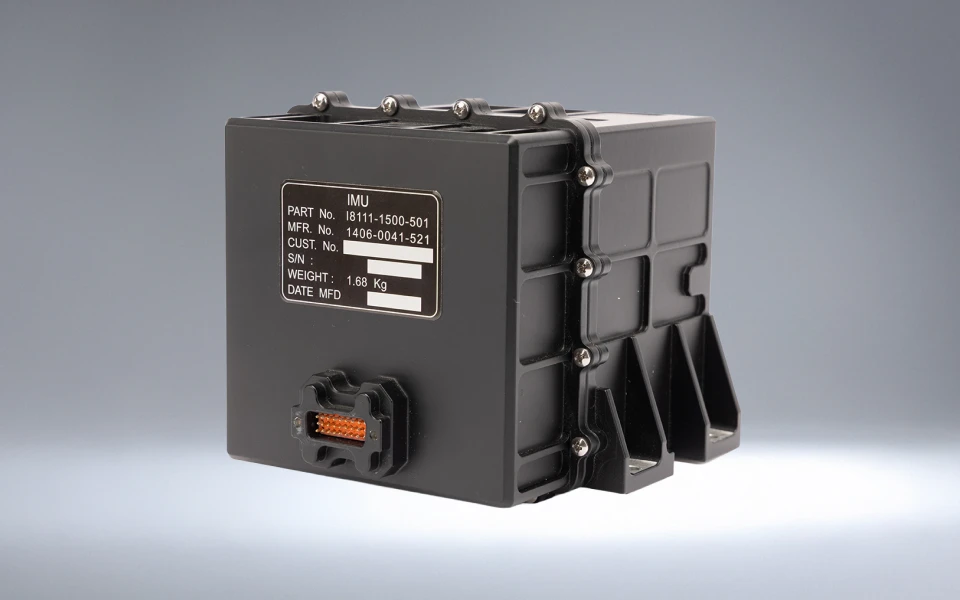

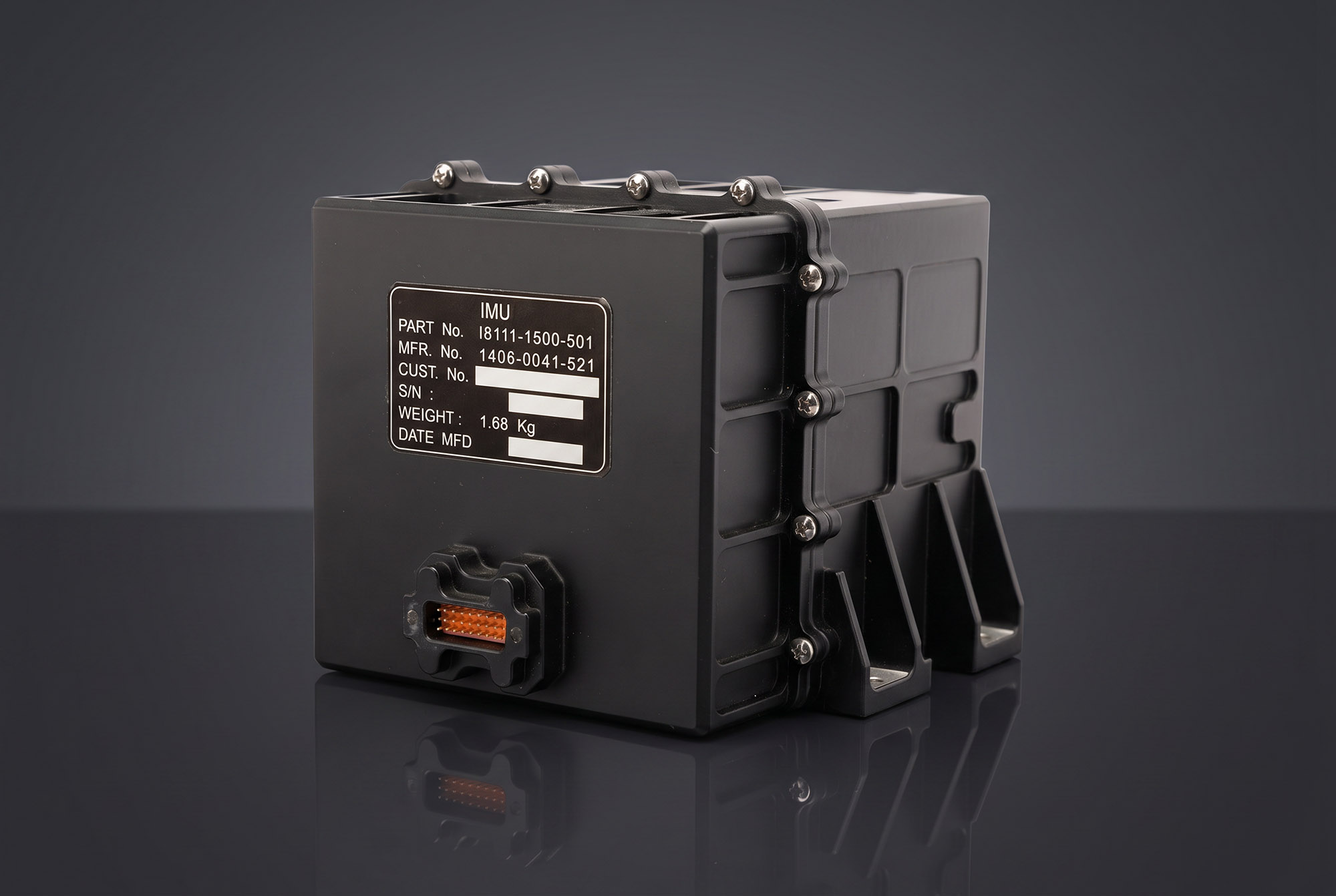

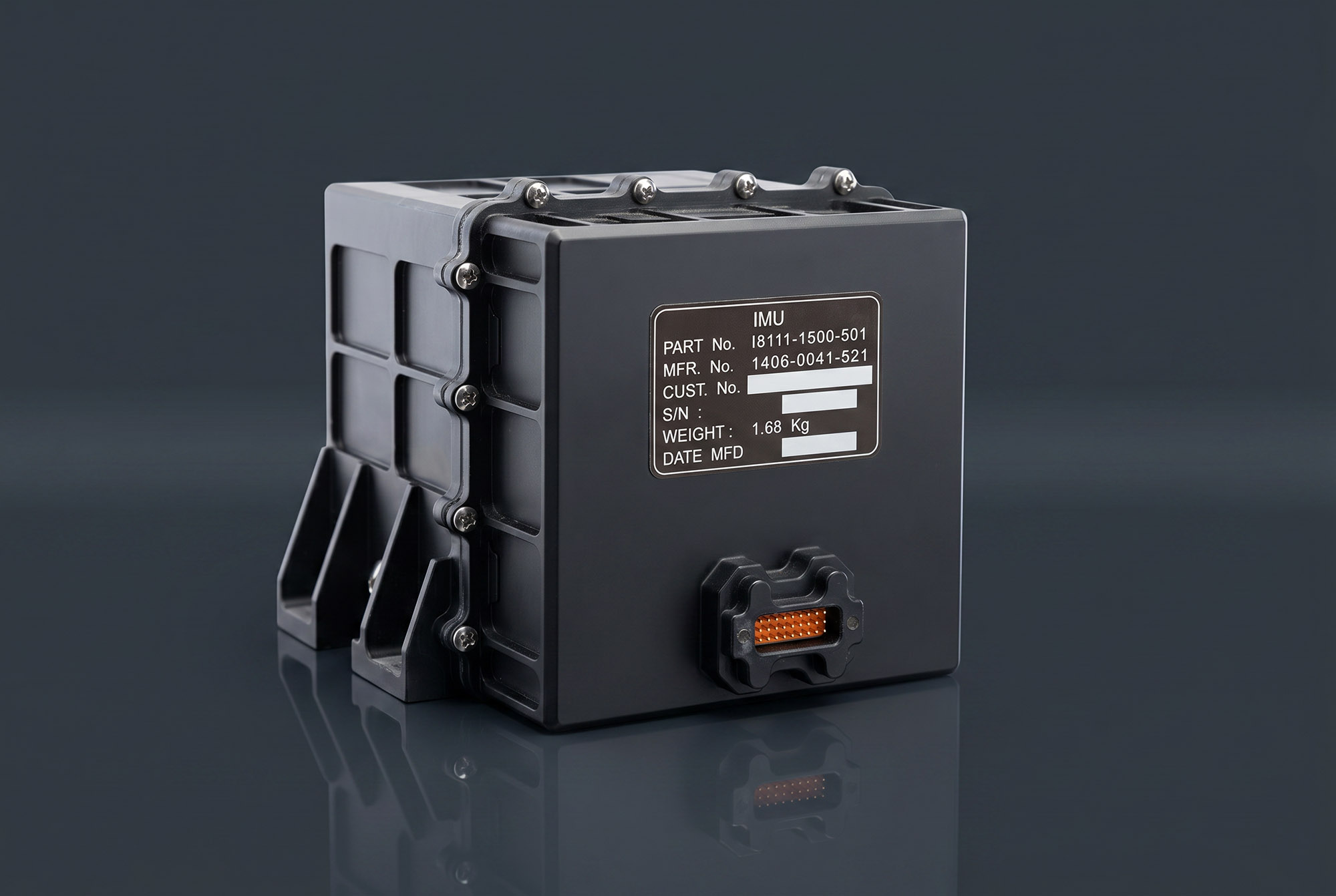

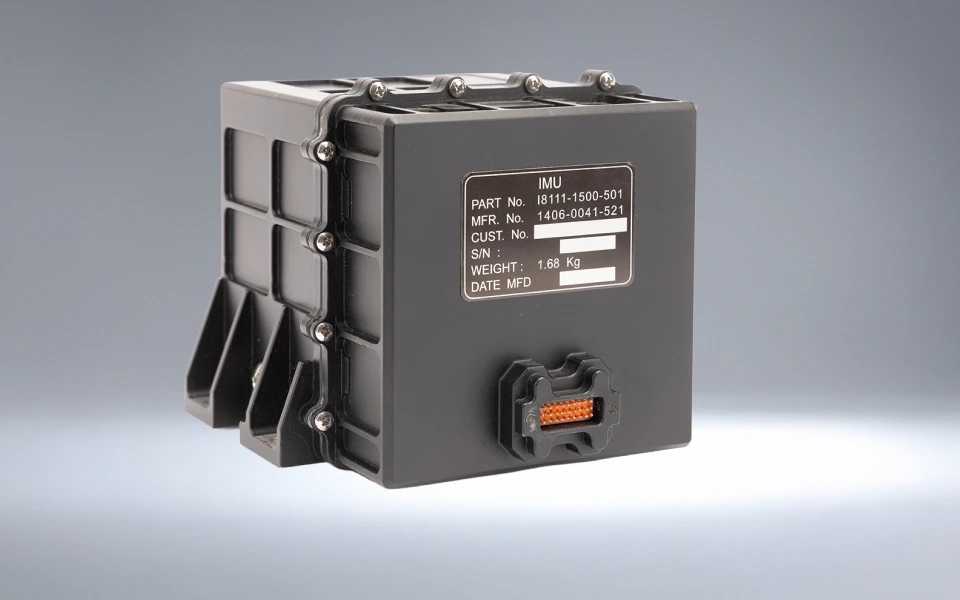

TRL-16m is an accurate, compact and light weight inertial measurement unit. TRL products are most suitable for a verity of stabilization and orientation applications for aerial, naval and ground uses. The TRL has a proven operational record, with thousands of systems fielded on platforms worldwide including fixed-wing, rotor craft, unmanned aerial systems, guided munitions, missile systems and more.
HIGHLIGHTS
- Based on TAMAM state of the art precision RLG and Q-Flex accelerometer technologies
- Proved record of accuracy, and availability in a variety of platforms and applications
- Compact and lightweight design
- High reliability
Technical Details
- Technical Details Performance
- Power per MIL-STD-704-D 12 W max. Bias Accuracy [1σ] - Gyroscope Channel Grade A: 0.1°/hr Grade B: 0.5°/hr
- Communication Interfaces RS485, UART, SDLC (Optional) Scale factor Accuracy [1σ] - Gyroscope Channel Grade A: 50 ppm Grade B: 100 ppm
- Size (excluding flanges and connectors) 117 mm (L), 115mm (W), 110mm (H) Random Walk [max] - Gyroscope Channel Grade A: 0.03°/√hr Grade B: 0.1°/√hr
- Weight 1.7 Kg Bias Accuracy [1σ] - Accelerometer Channel Grade A: 0.1mg Grade B: 1mg
- Environmental Conditions MIL-STD-810F and MIL-STD-461E Scale factor Accuracy [1σ] - Accelerometer Channel Grade A: 200ppm Grade B: 700ppm
- Operational temperature -40°C to +71°C Random Walk [max] - Accelerometer Channel Grade A: 0.05m/sec/√hr Grade B: 0.1m/sec/√hr
- Magnetic Sensitivity 0.1°/hr/gauss
