The radar integrates systems like IFF, AIS, and ADS-B, which enrich its operational capabilities. These integrations allow for better identification and tracking of targets, providing a comprehensive surveillance solution that enhances maritime safety and security.
OVERVIEW

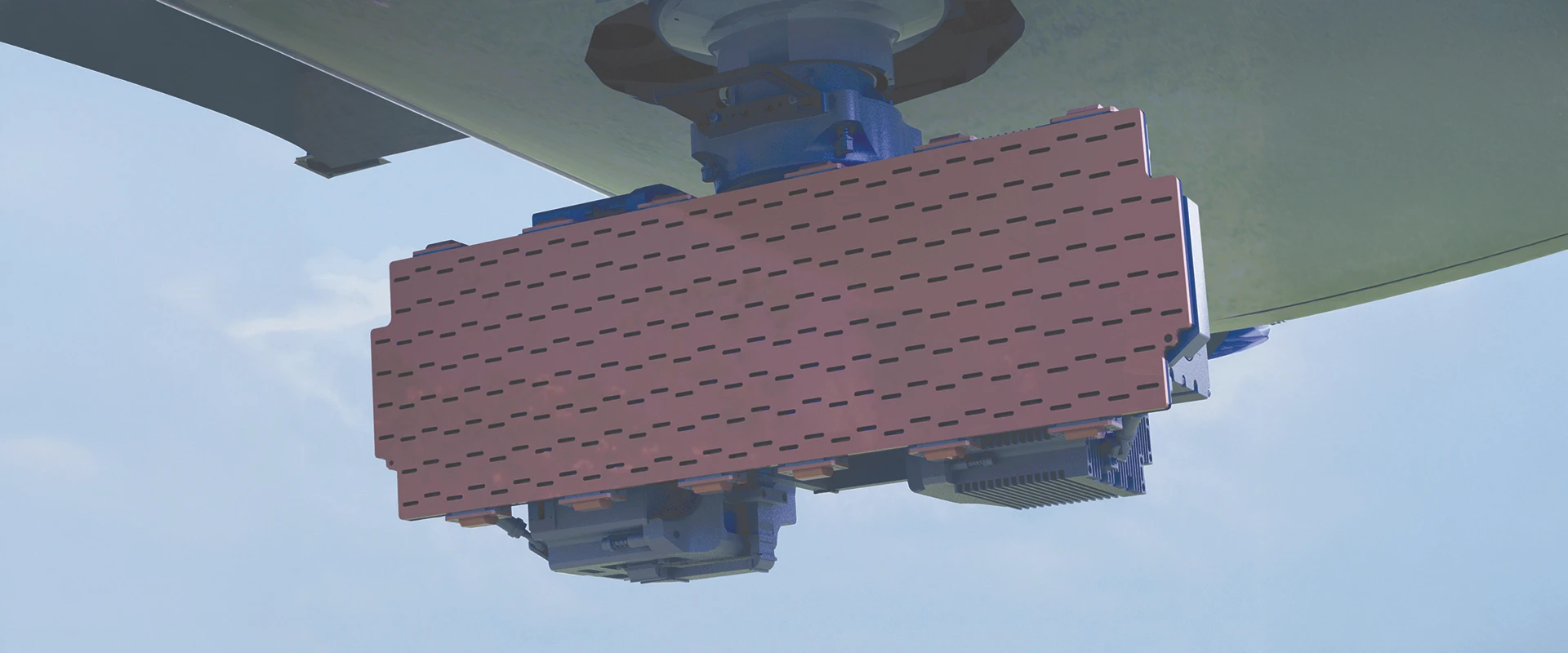

The ELM-2022ML by IAI-ELTA represents a significant advancement in the ELM-2022 radar family, specifically designed for maritime surveillance. This version is tailored for aircraft that require a lighter, more power-efficient radar system without compromising performance. Compact, reliable, and versatile, it delivers superior detection and tracking capabilities for a wide range of maritime and multi-domain missions.
HIGHLIGHTS
- Long-range maritime surveillance, up to 160 nm (large targets up to horizon)
- Detection of small targets in adverse sea conditions
- Automatic tracking of all detected targets
- Range profile, ISAR and CSAR classification modes, with automatic classification to class (ISAR library)
- Strip and spot Synthetic Aperture Radar (SAR) imaging and GMTI as ISR support for ground operation
- Navigation and weather mode
- Integrated IFF/AIS system
Values & Benefits
The ELM-2022ML is a compact and lightweight radar, weighing only 54 kg, making it ideal for fixed-wing aircraft, helicopters, and unmanned aerial vehicles. Its reduced size and power requirements (1.1 kW) do not hinder its capability to perform in all weather conditions—day or night. It effectively penetrates environmental obstructions like clouds, rain, and fog, providing reliable data in challenging scenarios.
Designed for a wide range of operational missions, the ELM-2022ML excels in maritime surveillance, EEZ patrol, search and rescue operations, and law enforcement activities such as fishery protection and drug enforcement. Additionally, it supports air-to-air and air-to-ground intelligence, reconnaissance, and surveillance (ISR) missions, making it a versatile choice for various security and surveillance needs.
The ELM-2022ML features sophisticated radar technologies including synthetic aperture radar (SAR) imaging for detailed ground observations and moving target indication (MTI) for tracking mobile objects. It also supports automatic tracking and classification of small targets in adverse sea conditions, enhancing its effectiveness in maritime surveillance.
